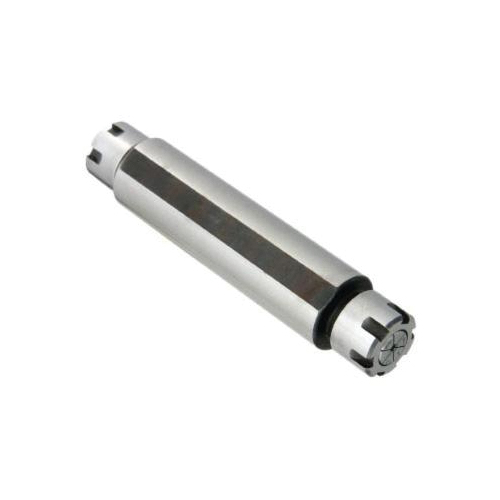

ER11 3/4" x 3.35" DE STR SHANK HOLDER
ER11 3/4" x 3.35" DE STR SHANK HOLDER
TEC04802-DE
04802-DE
150.93
/ EA
http://schema.org/OutOfStock
/Product/TEC04802-DE
- Collet System: ER11
- Type: Double End
- Chuck Size: ER11
- Collet Nut Diameter: 3/4in
- Country of Origin: TW
- Has Attributes: Yes
- Has Image: Yes
- Head Length/Projection: 0.472in
- Manufacturer Name: TECHNIKS INDUSTRIES
- Nose Diameter: 0.748in
- Overall Length: 89mm
- Shank Diameter: 3/4in
- Shank Type: Straight
ER double ended collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth and tighten the collet nut to proper torque using a torque wrench and tightening fixure. Techniks tool holders are manufactured to the highest possible standards to extend perishable cutting tool life and improve CNC machine performance.
- Application
- Includes
- Item Features
For CNC Swiss style turning machines
Mini Nut
- Collet chucks are made with precision to achieve T.I.R. of 0.0001 in or less
- The double ended holder fits CNC swiss style machines
- The wrench flats extend the full length of the shank
- Works with ER mini nuts
