- Country of Origin: US
- Domestic/Import: Domestic
- Fitting/Connector Type: Coupling
- Length: 3-9/32 in

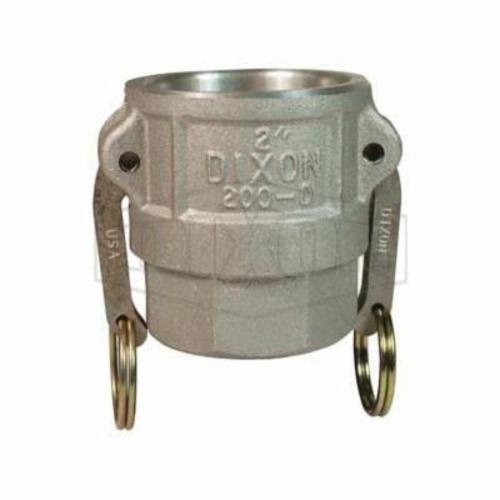

- Manufacturer Name: Dixon Valve & Coupling
- Material: Aluminum
- Pressure Rating: 250 psi
- Type: Type D
- Nominal Size: 2 in
- End Style: Female Coupler x FNPT
- Has Attributes: Yes
- Has Image: Yes
- Application
- Item Features
Designed for use with liquids
- 8-1/32 in open x 3-15/16 in closed across cam arm
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Durable stainless steel cam arm pins
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
