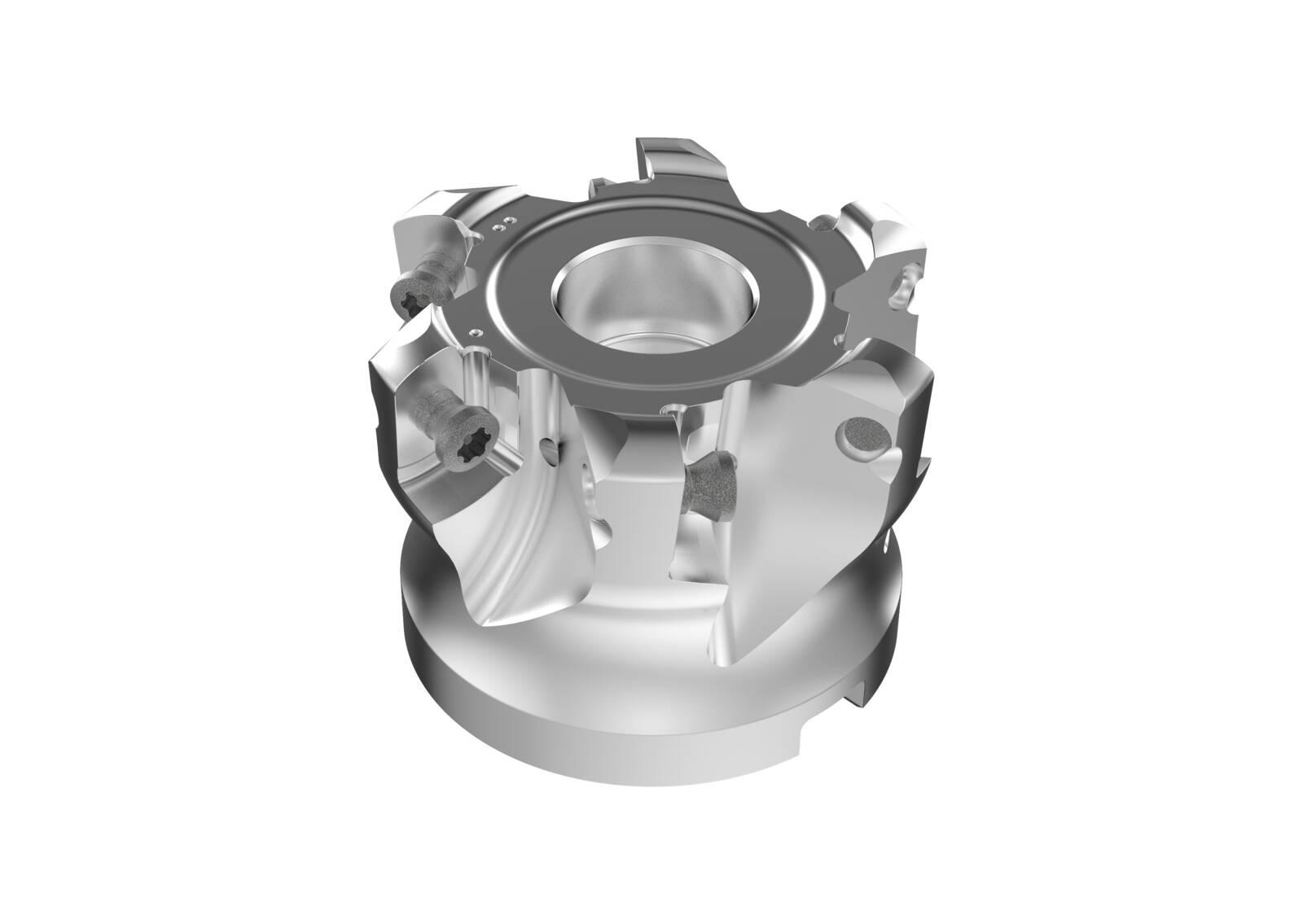

R220.21-02.00-LP09-6A

R220.21-02.00-LP09-6A

SEC03212903 03212903
848.00 / EA
http://schema.org/OutOfStock
R220.21-02.00-LP09-6A
  • Arbor Hole Diameter: 0.75 in, 0.75in
  • Country of Origin: SE
  • Cutter Diameter Inch: 1.488in
  • Hand Direction: Right Hand
  • Insert Style: LPKT09
  • Manufacturer Name: Seco Tools
  • Maximum Depth of Cut: 0.071 in, 0.071in
  • Number of Inserts: 6
  • Overall Length: 1.5 in, 1.5in
  • Series: R220.21
  • Shank Type: Arbor
  • Through Coolant (Yes/No): Yes
  • Type: Indexable
  • Depth Of Cut Maximum In Feed Direction Side: 0.071in
  • Connection Bore Diameter: 0.75in
  • ANSI Designation: R220.21-02.00-LP09-6A
  • Cutting Edge Count: 6
  • Depth Of Cut Maximum In Feed Direction End: 0.287in
  • Functional Length: 1.5in
  • Has Attributes: Yes
  • Has Image: Yes
  • Maximum Ramping Angle: 2.2°
  • Maximum Speed: 24600 rpm
  • Old Manufacturer Number: 03212903
  • Programming Radius: 0.136in
  • Uncut Thickness: 0.028in
QTY
Add to List
  • Item Features
  • Up to three times faster machining than conventional methods, perfect for creating a good platform for further machining operations or a final finishing
