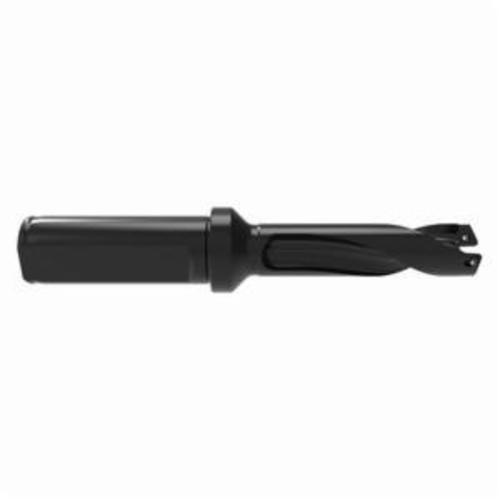

SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
AME60315S-075F
60315S-075F
303.00
/ EA
http://schema.org/OutOfStock
/Product/AME60315S-075F
- Coolant Hole Thread: 1/8in NPT Rear
- Country of Origin: US
- Drill Body Length: 2-61/64in
- Drill Depth: 1-57/64in
- Drill Depth by Diameter Ratio: 3XD
- Drilling Capacity: 0.5906 to 0.6298in
- Manufacturer Name: Allied Machine & Engineering
- Overall Length: 4-63/64in
- Series: 15 Series
- Shank Diameter: 3/4in
- Shank Type: Flanged with Flat
- Type: Replaceable Straight Flute
- Has Attributes: Yes
- Has Image: Yes
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
