KENNAMETAL - WIDIA

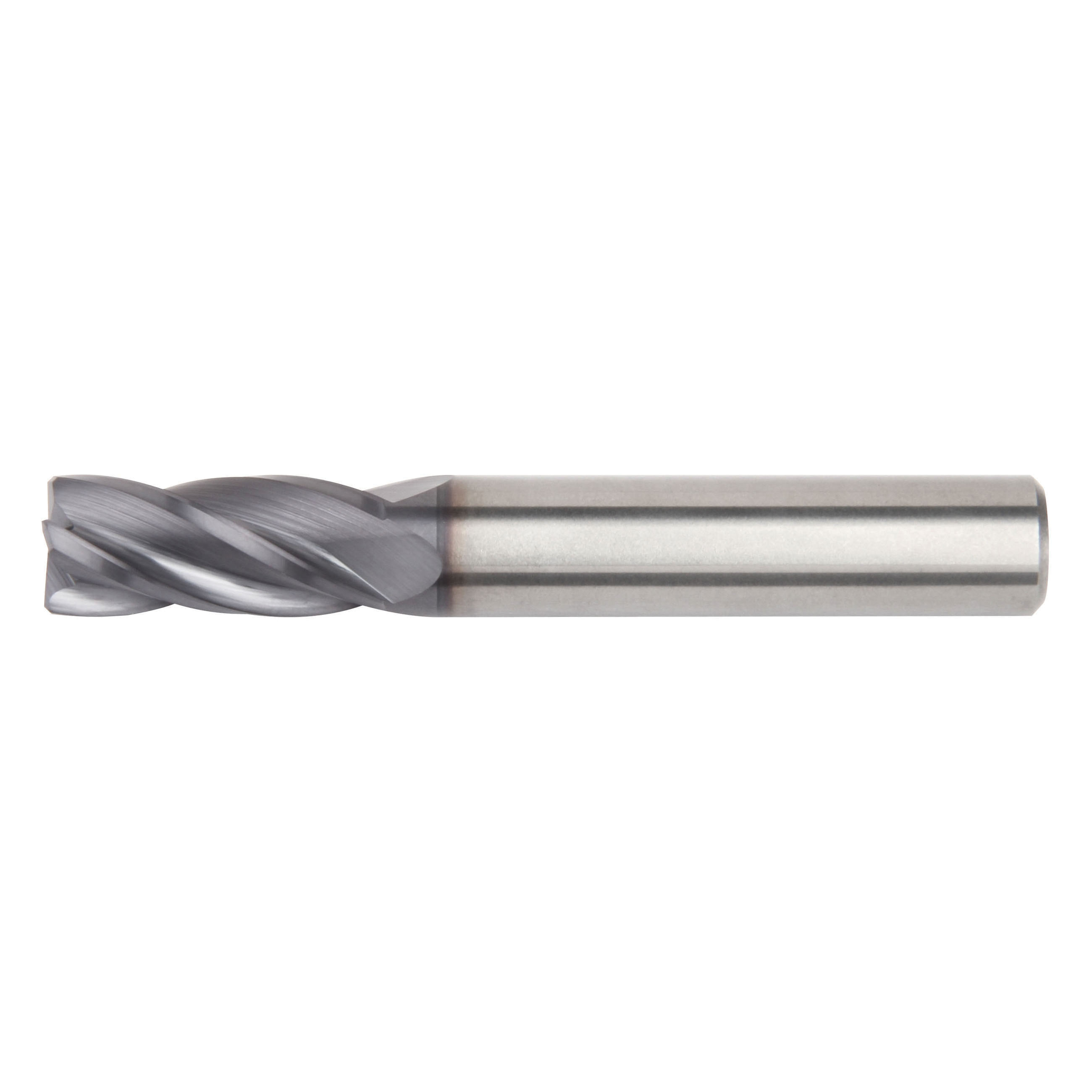

GP SC END MILL 4FL 7x8x16x63

WIDA5825940 MFG #: 5825940
$32.01 / EA
GP SC END MILL 4FL 7x8x16x63
  • Corner Radius: 0.1mm
  • Cutter Diameter Metric: 7mm
  • Number of Flutes: 4
  • Length of Cut: 16mm
  • Overall Length: 63mm
  • Material: Solid Carbide
  • Surface Treatment: TiAlN Coated
  • Helix Angle: 30°
  • Shank Diameter: 8mm
  • Shank Type: Straight/Cylindrical
  • Series: VariMill™ GP D014
  • Country of Origin: IN
  • Flute Type: Spiral
  • Hand Direction: Right Hand
  • Manufacturer Name: WIDIA
  • Type: Center Cutting General Purpose Single End
VariMill™ GP offers plunging, slotting and profiling for a wide range of materials and applications. Designed to provide high metal removal rates and excellent surface conditions at a value price.
QTY
Add to List
  • Application
  • Item Features
  • Standards
Ramping, Roughing and Finishing
  • Increased manufacturing flexibility and reduced tool cost
  • Less tool changes and high metal removal rates (MRR)
  • Eccentric relief for improved edge stability and high tool life
  • Easy and cost efficient regrinding due to eccentric relief
  • Corner chamfer for increased tool life
DIN 6527
