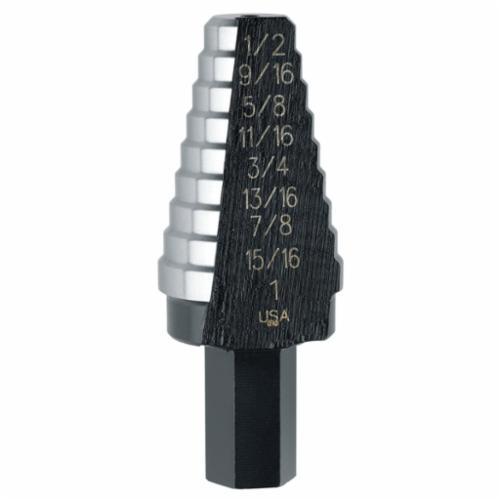

UNIBIT-20 9/16-1IN STEPDRILL
ORS585-10220
MFG #: 585-10220
$69.53
/ EA
- Applicable Materials: Aluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
- Country of Origin: US
- Cutting Edge Material: HSS
- Drill Diameter Measurement System: Imperial
- Hole Sizes Cut: 8
- Letter/Wire Size: #20
- Manufacturer Name: Stanley Black & Decker
- Material: HSS
- Maximum Hole Diameter: 1 in
- Minimum Hole Diameter: 9/16 in
- Number of Flutes: 1
- Number of Hole Sizes: 8
- Number of Steps: 8
- Point Type: SpeedPoint®
- Shank Size: 7/16 in
- Shank Type: 3-Flat
- Step Depth: 1/8 in
- Type: Hole Enlarging
Irwin® Unibit® step drill bits are ideal for drilling holes in just about any type of thin material. General purpose high speed steel Unibit® step drill bits are perfect for use in mild steel, copper, brass, aluminum, plexiglass, wood, and laminate. Our titanium nitride coated (TiN) bits resist heat and friction, which extends the life of the cutting edge six times longer than standard step drills. And, our cobalt step drill bits are engineered with m35 cobalt steel for maximum life when drilling in the toughest steel, including stainless steel. Most Unibit® step drills are designed with a SpeedPoint® tip that guarantees fast starts. Theyre manufactured with a single flute cutting edge that drills multiple sizes of true, round holes with precise step control. Plus, the hole sizes are permanently laser etched on the inside of the flute, so they can be easily identified throughout the life of the bit.
- Application
- Item Features
For drilling holes into thin materials
- Single flute cutting edge for greater control through steps
- 3 flatted shank prevents slipping in drill chuck
- Patented single flute cutting edge gives the user a true round hole every time
- Geometry of single flute cutting edge drills true, round holes and provides maximum step control
- Laser etched sizes inside flute for easy and permanent hole size identification
- SpeedPoint® tip for fast starts
- Hex shaped shank secures easily in drill
- #1, #2, #10 and #12 sizes have a quick change shank
