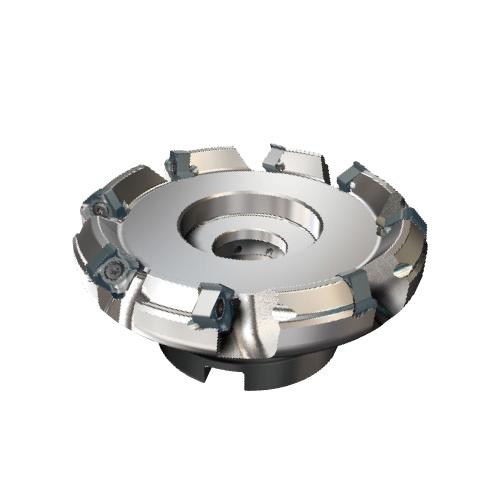

WSX445UR0203AA 2" 3FL 45 DEGREE FACE MILL
WSX445UR0203AA 2" 3FL 45 DEGREE FACE MILL
MIT828369
828369
574.35
/ EA
http://schema.org/OutOfStock
/Product/MIT828369
- Series: WSX445_INCH
- Maximum Depth of Cut: 0.197"
- Hand: Right Hand
- Access Hole Diameter: 0.413"
- Attributes (Y): Y
- Axial Rake Angle: -6°
- Connection Bore Counterbore Diameter: 0.63"
- Connection Bore Depth: 0.748"
- Connection Diameter: 0.75"
- Cutting Edge Angle: 45°
- Functional Length: 1.75"
- Image (Y): Y
- Keyway Width: 0.313"
- Machine Side Contact Surface Diameter: 1.75"
- Maximum Diameter: 2.506"
- Measurement Standard: Imperial
- Radial Rake Angle: -10°
