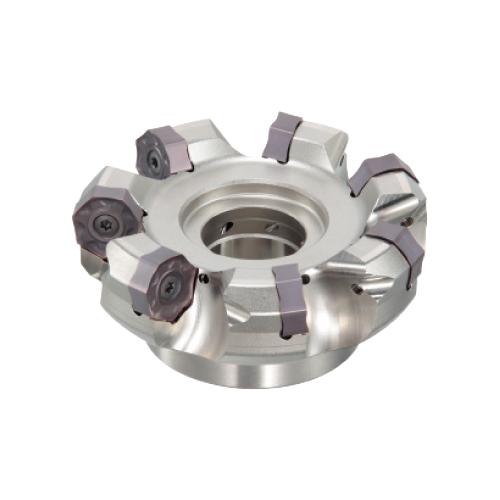

AHX640SUR0306DA
MIT572607
MFG #: 572607
$929.30
/ EA
- Series: AHX640S_INCH
- Maximum Depth of Cut: 0.236"
- Hand: Right
- Access Hole Diameter: 0.669"
- ANSI Designation: AHX640SUR0306DA
- Attributes (Y): Y
- Axial Rake Angle: -6°
- Connection Bore Counterbore Depth: 0.776"
- Connection Bore Counterbore Diameter: 1.024"
- Connection Bore Depth: 1.26"
- Connection Diameter: 1.25"
- Cutting Edge Angle: 50°
- Functional Length: 2.5"
- Image (Y): Y
- Keyway Width: 0.5"
- Machine Side Contact Surface Diameter: 2.88"
- Maximum Diameter: 3.494"
- Measurement Standard: Imperial
- Radial Rake Angle: -5°
